Kenwood TS-870S

Digital HF Transceiver

This Kenwood 870 is perfect ... A very late last run -6- serial number

One of the best HF and most popular rigs made ... One of if not the best Enhanced SSB Audio Transceivers made. Digital signal processing at the IF stage is a earmark of the Kenwood TS-870S HF transceiver. DSP technology uses a dedicated computer chip to convert analog waveforms into digital information in real-time, providing the opportunity to filter and enhance the quality of the signal before it is reconverted into analog form for the human ear. This design uses two state-of-the-art 24-bit 20 MIPS DSP chips that provide for receiving enhancements to bring signals out of the noise. Imagine over 100dB out of pass band attenuation with virtually no signal loss by the DSP filter! CW bandwidth adjustable down to 50 Hz. Advanced speech processing with transmit equalization that works. Plus complete computer operation and control of the TS-870S is possible with a built-in RS-232C port [DB9]. The built-in automatic antenna tuner works on all bands in both transmit and receive modes. The TS-870S requires 13.8 VDC at 20.5 amps.

Features
160-10 meters
Digital Filtering
Beat Canceller
100 Memories
Xmit Equalizer
100 Watt Output
K1 Logic Keyer
RX Ant Input
Windows Pgm.
Dual VFOs
RIT/XIT
Optional Voice Synthz.
IF Stage D.S.P.
Dual Noise Reduction
Auto Notch Filter
Variable AGC
Voice Equalizer
RS-232C Port
Auto Tuner RX/TX
FM Tone Encoder
Hi Speed Control
Dual VFO Display
Quick Memory

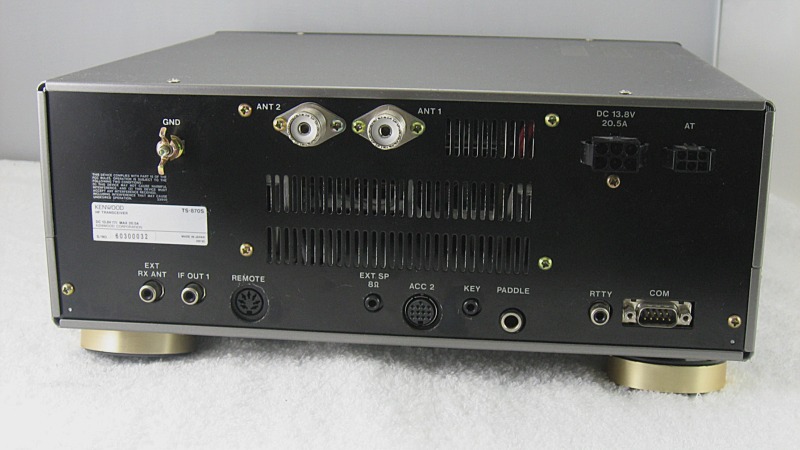

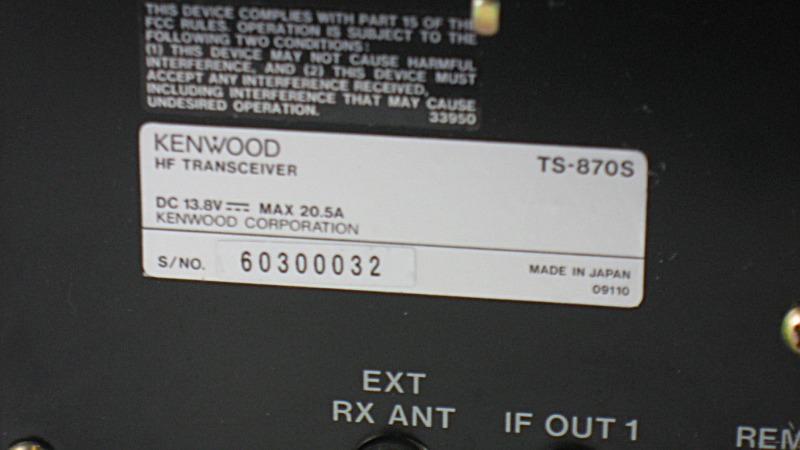

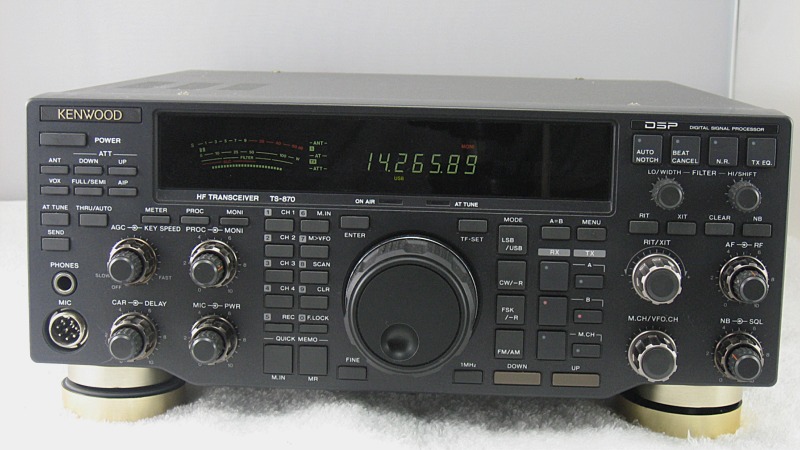

This 870 is in great shape, all functions work well. Inrad Filter!! The casing and top cover are very good, all decals are clean, as you can see. Owners manual, power cord supplied. Weight with packaging is 36 pounds. Serial Number is 60300032, unit will not be DOA but is sold as is.....

Cost......$ 1475.00 plus shipping

Email ... Bill, KC4PE ...

Payment via checks/Money Order
